| 5G NR | Standards | 3GPP R15 |
| Main CPU Architecture | Quad-Core, 2.0 GHz | |
| Frequency bands | Selectable | |
| WLAN |
2.4GHz:IEEE802.11b/g/n/ax/be 2*2
5GHz:IEEE802.11a/n/ac/ax/be 2*2
|
|
| Antennas | 5G/LTE antennas | Internal 6 antennas |
| Wi-Fi antennas | Internal 2×2 2.4GHz MIMO Internal 2×2 5GHz MIMO |
|
| Interface | Port |
1×USB 2.0 |
| Indicator |
1×5G NR |
|
| Button | 1×Reset 1×WPS 1×Power |
|
| Environment | Operating temperature: -10°C to 45°C Storage temperature: -40°C to +70°C Humidity: 5% - 95% (non-condensing) |
|
| Others | Dimensions | 95mm x 114mm x 186mm |
High‑Speed 5G Connectivity Meets Wi‑Fi 7
The IDU‑1554 functions as a powerful 5g modem router supporting 3GPP R15 5G NR as well as LTE Cat 19/18 for ultra-fast data throughput. With internal 6×5G antennas and dual‑band Wi‑Fi 7 (IEEE 802.11ax/be) offering 2×2 MIMO on both 2.4 GHz and 5 GHz, this 5g router sim ensures broad, seamless coverage and reliable high‑speed wireless performance in diverse indoor environments.
Plug‑and‑Play Setup with Robust Internal Design

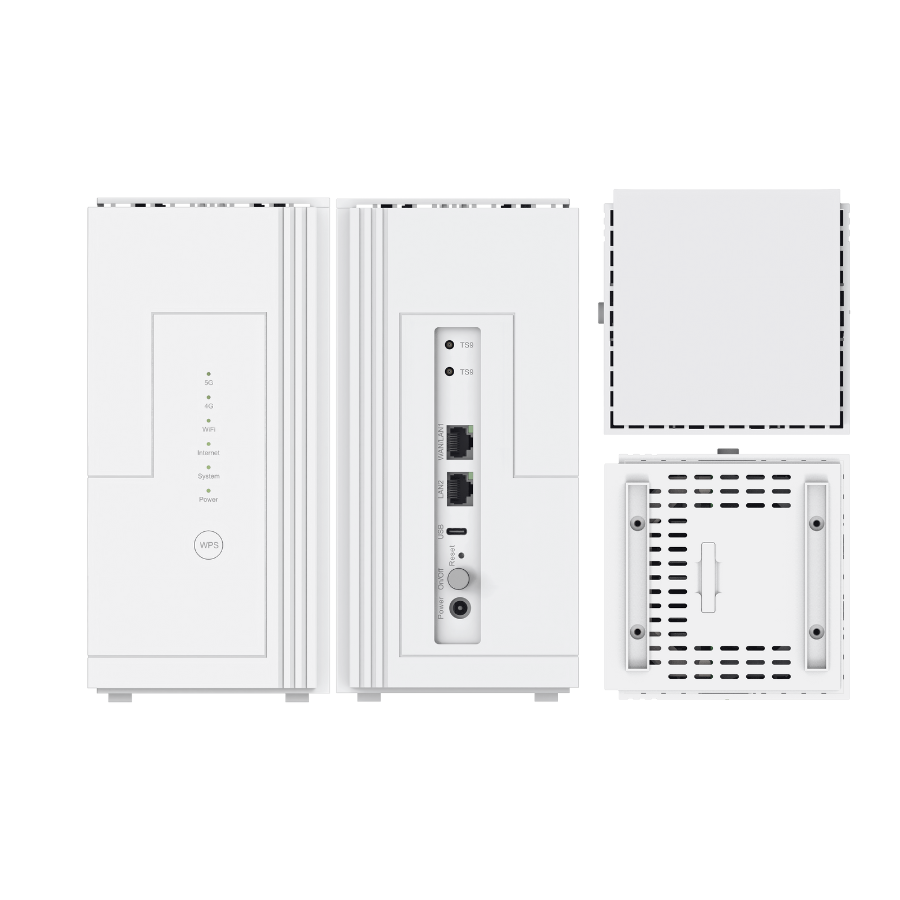

As a plug‑and‑play sim router 5g, the IDU‑1554 wireless unit activates quickly without requiring complex wiring. Its compact design includes 1 USB 2.0 port, 1 GE WAN, 1 GE LAN, and 1 FXS port for VoLTE/VoNR, along with a nano‑SIM slot (eSIM‑ready) and multiple status indicators. This 5g wireless router structure ensures fast setup and intuitive system visibility for end-users.
Built for Real‑World Reliability
Operating between –10 °C to 45 °C with storage down to –40 °C and humidity tolerance up to 95% non‑condensing, the IDU‑1554 offers the reliability expected of a 5g mobile router. Measuring 95×114×186 mm, it brings high-performance connectivity to homes, small businesses, and retail venues while maintaining a small footprint.
