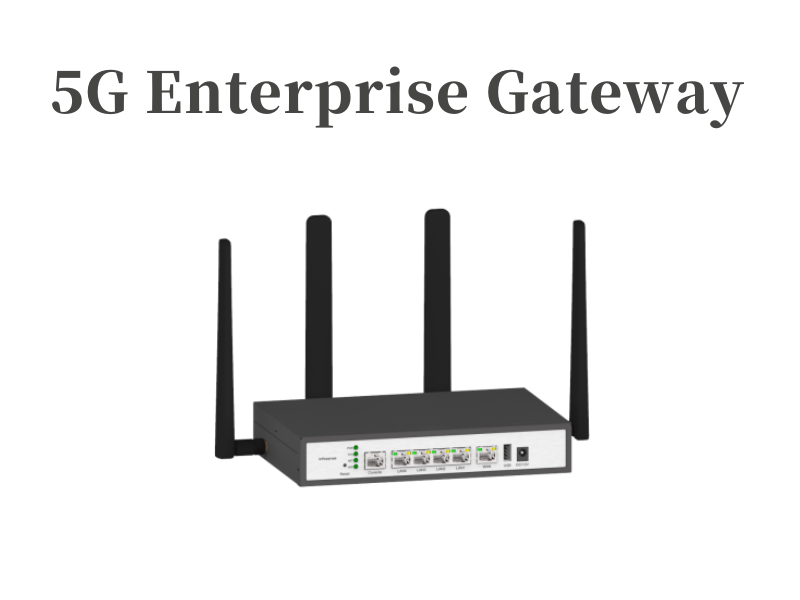

EA3541 5G Gateway

MegaTower® 5G AX1800 Enterprise Gateway

  • 3GPP R15/16
  • NR-SA/NR-NSA/LTE/WCDMA
  • AX1800, 2.4G&5G DBDC
  • WAN 1 * GE
  • LAN 4 * GE
  • Overview
  • Specifications
  • Advantages
  • Download

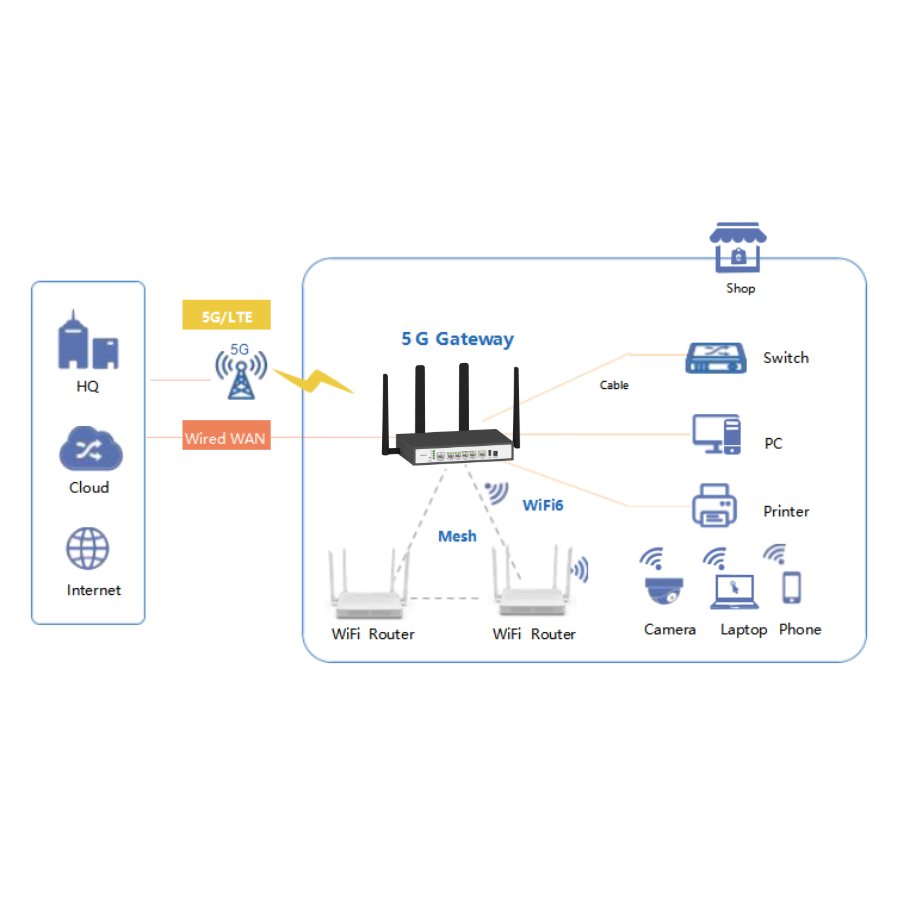

  • Applications
5G Gateway: Empowering Industrial Connectivity

The 5G Gateway is a powerhouse for industrial connectivity, offering edge computing capabilities that are pivotal for factory automation and operational efficiency. It supports network slicing to allocate dedicated network resources for specific industrial applications, ensuring low latency and high reliability . With the ability to upgrade to IP67, this gateway is not just a connectivity solution but a robust ally against the elements, providing dust, water, and corrosion resistance, making it ideal for harsh outdoor environments . It stands out with its high lightning protection rating, ensuring stable signal connections even in the most adverse weather conditions, thus becoming an indispensable choice for outdoor industrial settings .

Specification
Hardware Specification
5G NR Standards 3GPP R15/16
5G NR& LTE Cat 16
Frequency bands 5G NR: n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n77/n78/n79
LTE-FDD: B1/B3/B5/B7/B8/B18/B19/B20/B26/B28/B32 LTE-TDD:B34/B38/39/B40/B41/B42/B43 WCDMA:B1/B3/B5/B6/B8/B19
WLAN Default no WiFi, optional WiFi Support
IEEE802.11 a/b/g/n/ac/ax 5GHz 2x2 MIMO
IEEE802.11  a/b/g/n/ac/ax 5GHz 2x2 MIMO
AX1800
Antennas 5G antennas consult us for more...
Wi-Fi antennas consult us for more...
Interface Port 1×GE WAN/LAN
4×GE LAN
1×USB3.0
1×Phone
1×FXS(Optional)
1×Console
1×Nano-SIM
1×eSIM(Optional)
Indicator

1×Power/SYS

1× 5G WiFi
1× 2.4G WiFi
1× Ethernet

1×5G NR

1×4G LTE

Button 1×Reset
Environment Operating temperature: -10°C to 50°C
Humidity: 5% - 95% (non-condensing)
Others Power supply <24W
Installation Methos Consult us for more...
IP Protection Consult us for more...
Dimension & Weight 220*145*40mm



Rugged Industrial Connectivity

The EA3541 is built for industrial and B2B use—featuring 3GPP R15/16 5G, optional AX1800 Wi‑Fi 6, dual SIM redundancy, and 1 GE WAN + 4 GE LAN ports. As a pro-level best 5g router, it meets the toughest outdoor and enterprise demands.



Dual‑Mode 5G & Wi‑Fi IQ

Experience seamless dual-connectivity: robust 5G speeds with automatic failover to Ethernet, plus optional dual-band Wi‑Fi 6 for onsite wireless access. This combination ensures the EA3541 stands out as a true 5g router multi-service solution.



Durability in Harsh Environments

Designed for -30°C to +65°C operation, metal enclosure with IP40 (upgradeable to IP67), RS‑232/485, and high lightning resistance—this best 5g router thrives in outdoor, industrial, and remote deployments.



Enterprise‑Grade Security & Networking

Supports L2/L3 VPNs (IPSec, L2TP, VxLAN), VLAN segmentation, TR-069 remote management, and enterprise firewall. A complete 5g router solution for secure, centralized B2B network control.



Scalable Future‑Proof Platform

With support for network slicing, optional Wi‑Fi 6, dual SIM, and modular IP upgrades, the EA3541 is a future-ready best 5g router platform for evolving enterprise needs.





Take your network infrastructure to the next level.

Bulk pricing available—contact MegaTower today to secure the best 5g router for your enterprise deployment!

Advantages

Uncompromised Performance for Enterprise & Retail Networks



The MegaTower® EA3541 is a high-performance ​industrial-grade WiFi 6 router designed for SMBs, retail shops, and smart home environments. Equipped with a Qualcomm quad-core processor and dual-band WiFi 6 technology, it delivers ultra-fast speeds of up to ​1800Mbps (2.4GHz/5GHz) while supporting ​100+ concurrent devices. Its rugged design withstands extreme temperatures (-10°C to +45°C) and harsh environments, making it ideal for retail stores, warehouses, and industrial settings where network reliability is critical.







Complete Enterprise Features


With 1 Gigabit WAN and 4 Gigabit LAN ports, the router supports VLAN segmentation, static routing, and remote TR069 management for scalable multi-branch deployments. Advanced security includes ​WPA3 encryption, a built-in firewall (WAF/IDS/IPS), and DMZ isolation to defend against DDoS attacks, ARP spoofing, and unauthorized access.







Future-Ready Flexibility


Compatible with IPv6, Mesh networking, and IoT devices, the EA3541 ensures seamless integration with next-gen technologies. Its compact USB-C-powered design (107x38x10mm) and global certifications make it perfect for on-the-go, outdoor, or temporary office setups.









Effortless Management


IT administrators can monitor and update the router remotely via WebUI or TR069 protocols, reducing downtime and operational costs. The router’s robust traffic management and 50+ device capacity optimize bandwidth for peak productivity in demanding environments.







Download
Hardware Specification
